Air Suspension Kit for Mercedes Sprinter 5 TON 06-2023 RWD

In stock - 27 items available
Regular price £384.00 inc. VAT
Gauge

Semi Air Suspension Kit Designed for:

  • Mercedes Sprinter manufactured from 2006-2023
  • VW Crafter Manufactured from 2006-2016
Make/Model Mercedes Sprinter - SWB/MWB/LWB
Year 2006-2023
Drivetrain Rear Wheel Drive Only!
Rear Wheel Layout Twin Rear Wheel
Body Type Panel Van, Tipper, Motorhome, Camper, box van, horsebox, luton, crew van, recovery, dropside, flatbed
Chassis Type All standard type chassis



EXCLUDING AL-KO TYPE TORSION BARS CHASSIS

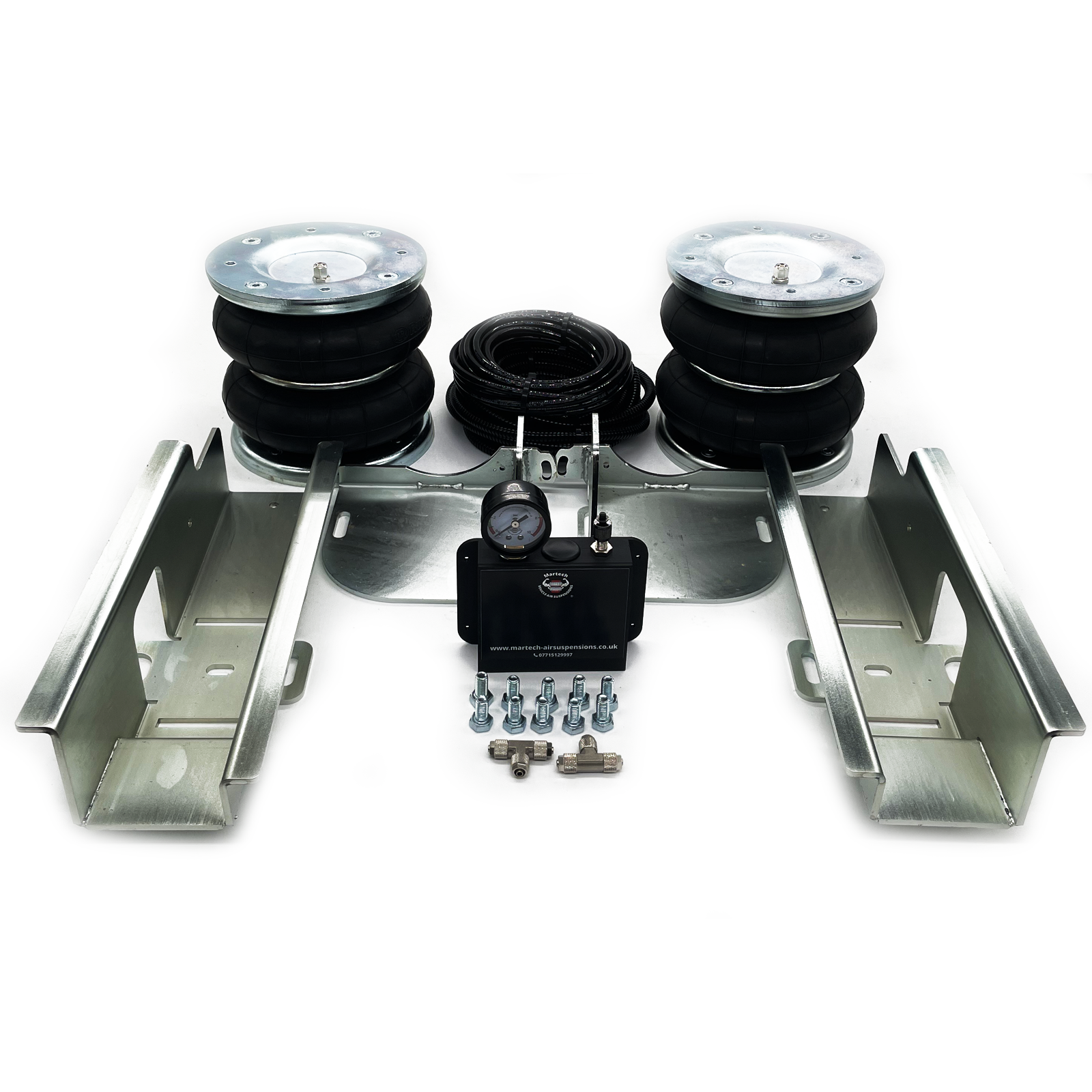

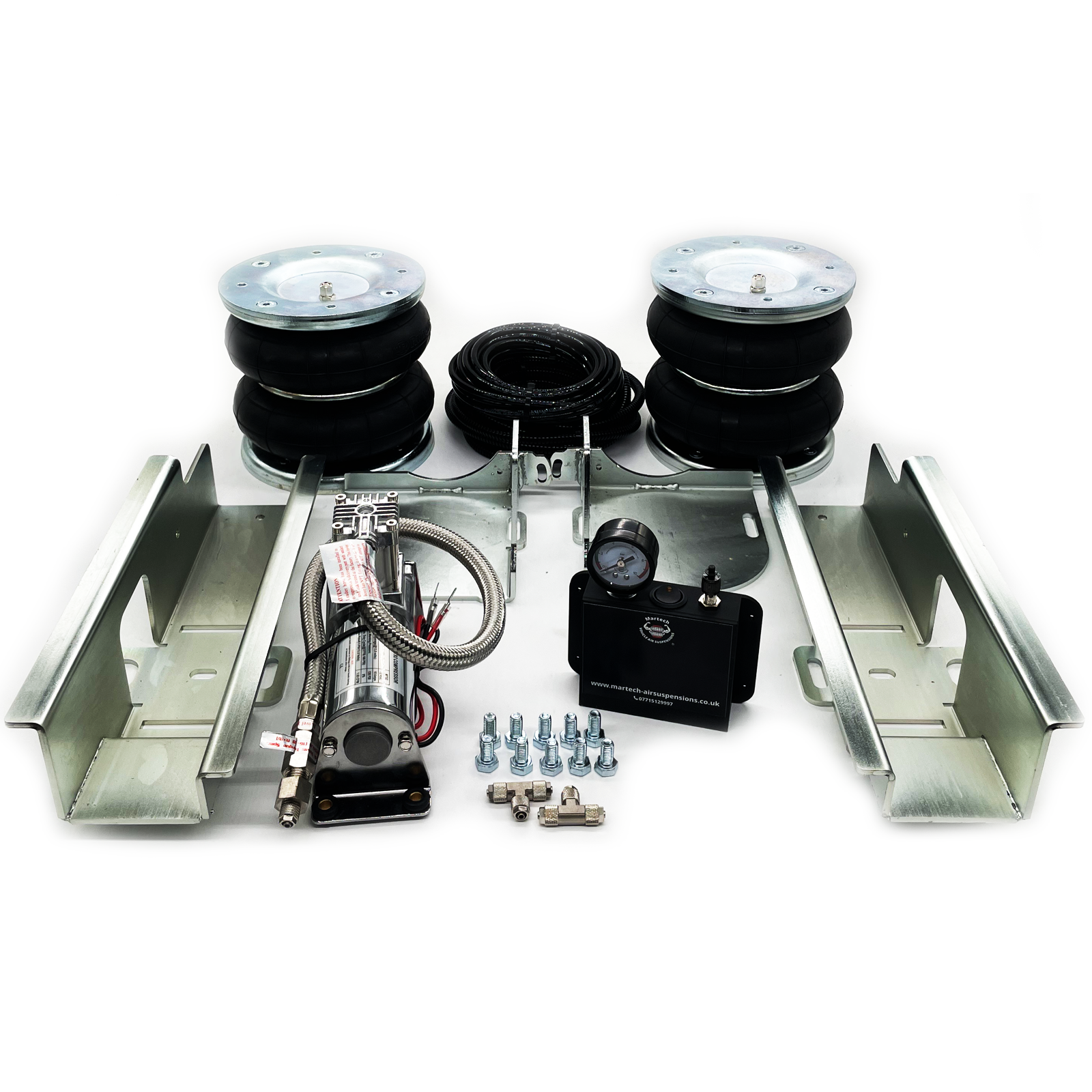

Basic Kit includes:

  • Fully galvanised heavy duty steel brackets
  • 2 x 170/2 Rubena Heavy Duty Air Springs
  • Box or Bracket gauge and valve
  • 8 Metre airline
  • 6 Metre protection conduit
  • 2 x T Joint
  • Bolts
  • Fitting guide

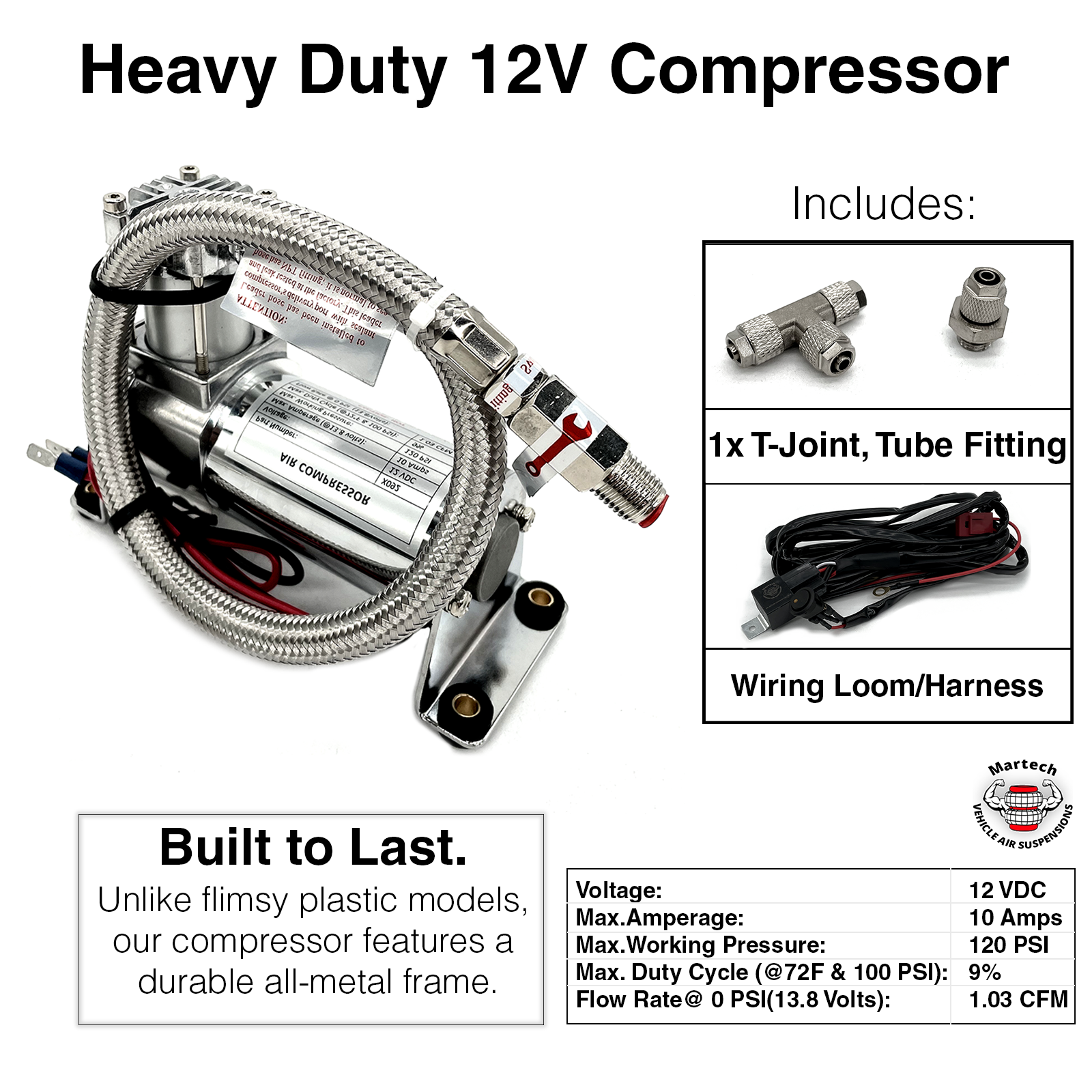

  • 12V Heavy duty martech mini air compressor
  • 2 Airline for Compressor
  • Cables
  • Additional airline

MIN (0.7 BAR )WHEN UNLOADED AND  ( 6 BAR )WHEN LOADED

HEIGHT: MIN 90MM, MAX 200MM. ( MAX HEIGHT IS DEPENDS ON WEIGHT OF LOAD )

All electrical components/gauges/valves are only to be used in the INTERIOR.

Rubena branded air bags support up to 4000 KG per pair

Martech branded air bags support up to 5000 KG per pair
