Comfort Air Suspension Kit for Ford Transit Twin RWD 2014-2019

In stock - 10 items available
Regular price £409.00 inc. VAT
Inflation Method

Semi Air Suspension Kit Designed for:

  • Ford Transit manufactured from 2014-2019, twin rear wheel only!
Make/Model Ford Transit
Year 2014-2019
Drivetrain Rear Wheel Drive
Rear Wheel Layout Twin Rear Wheel
Body Type Panel Van, Tipper, Motorhome, Camper, box van, horsebox, luton, crew van, recovery, dropside, flatbed
Chassis Type All standard type chassis



EXCLUDING AL-KO TYPE TORSION BARS CHASSIS

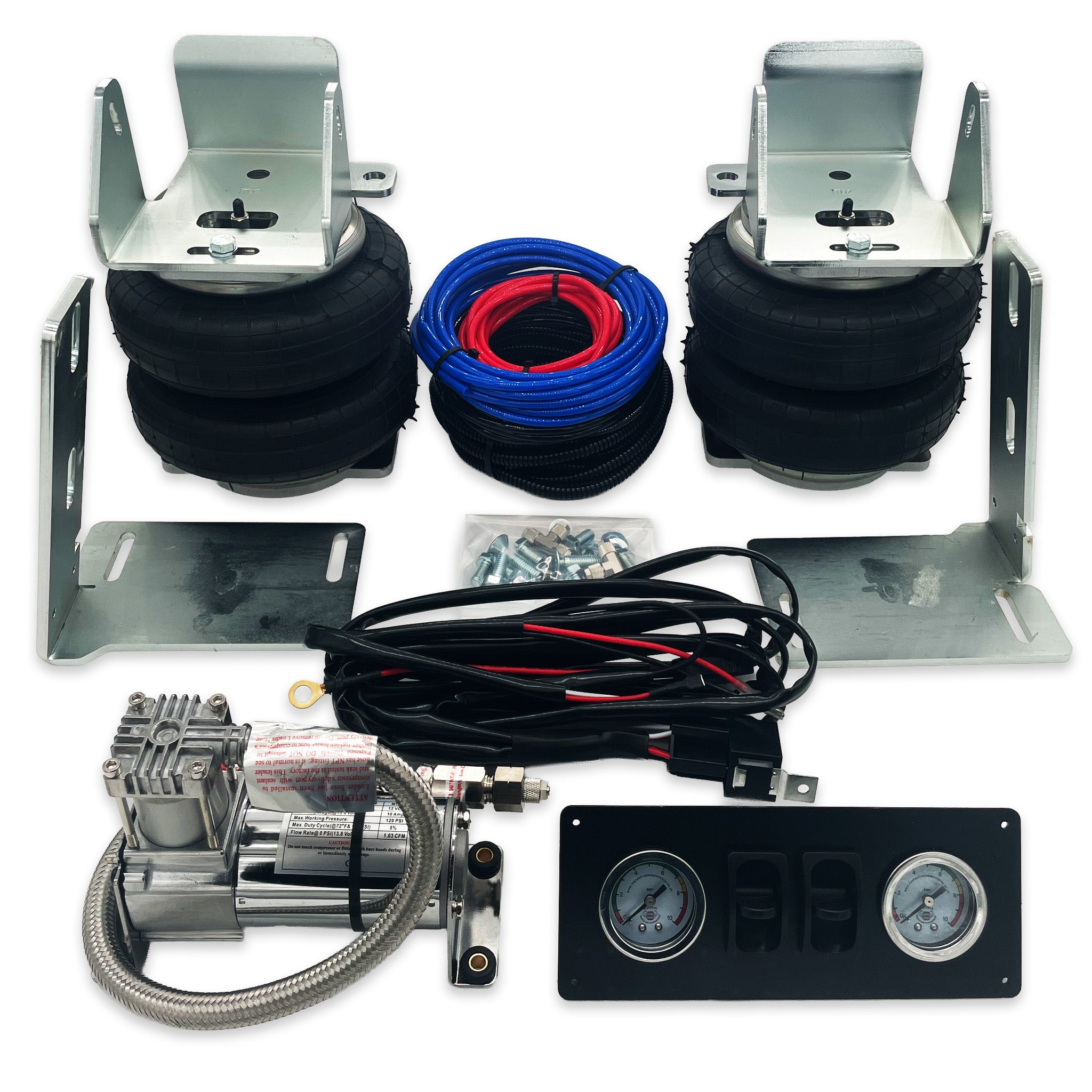

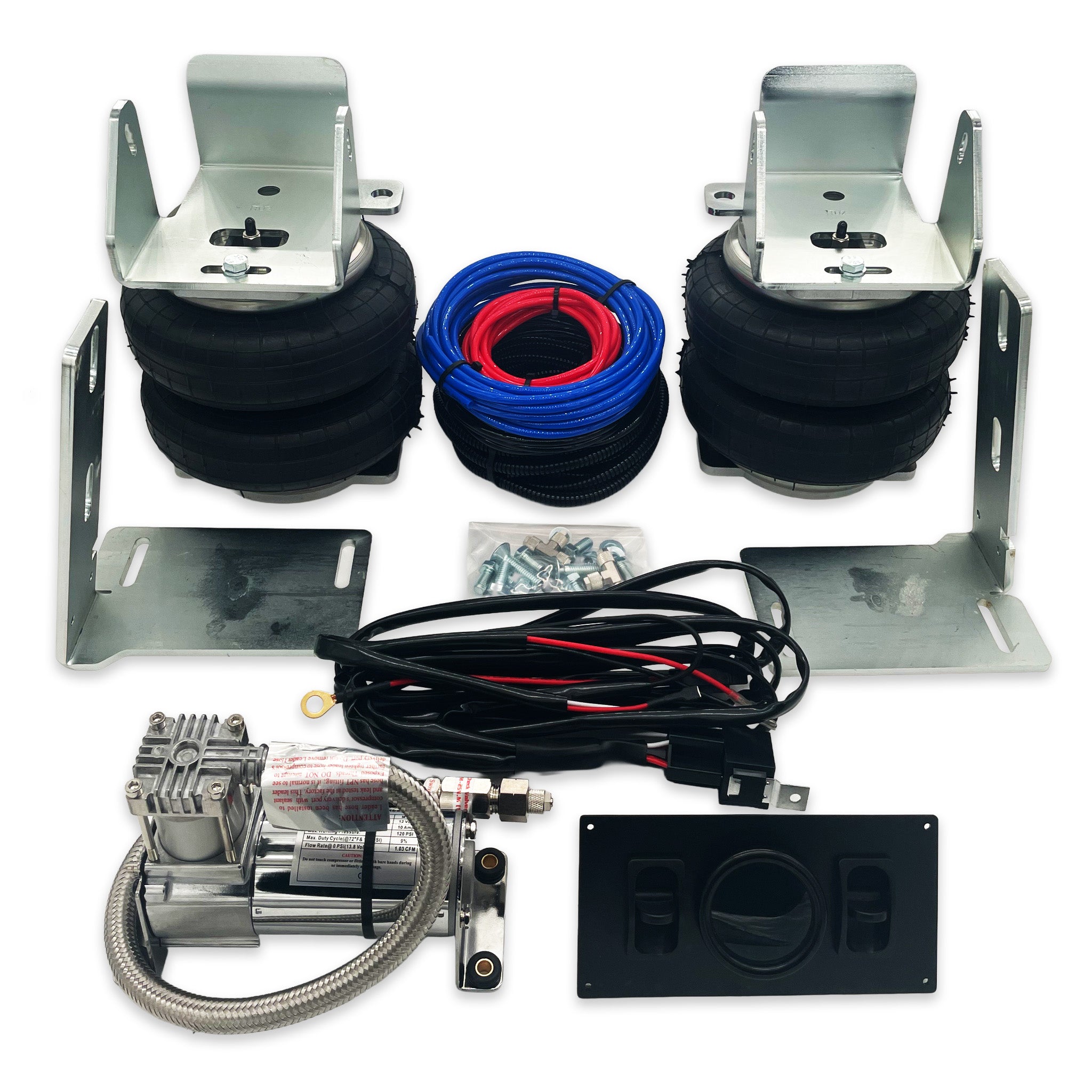

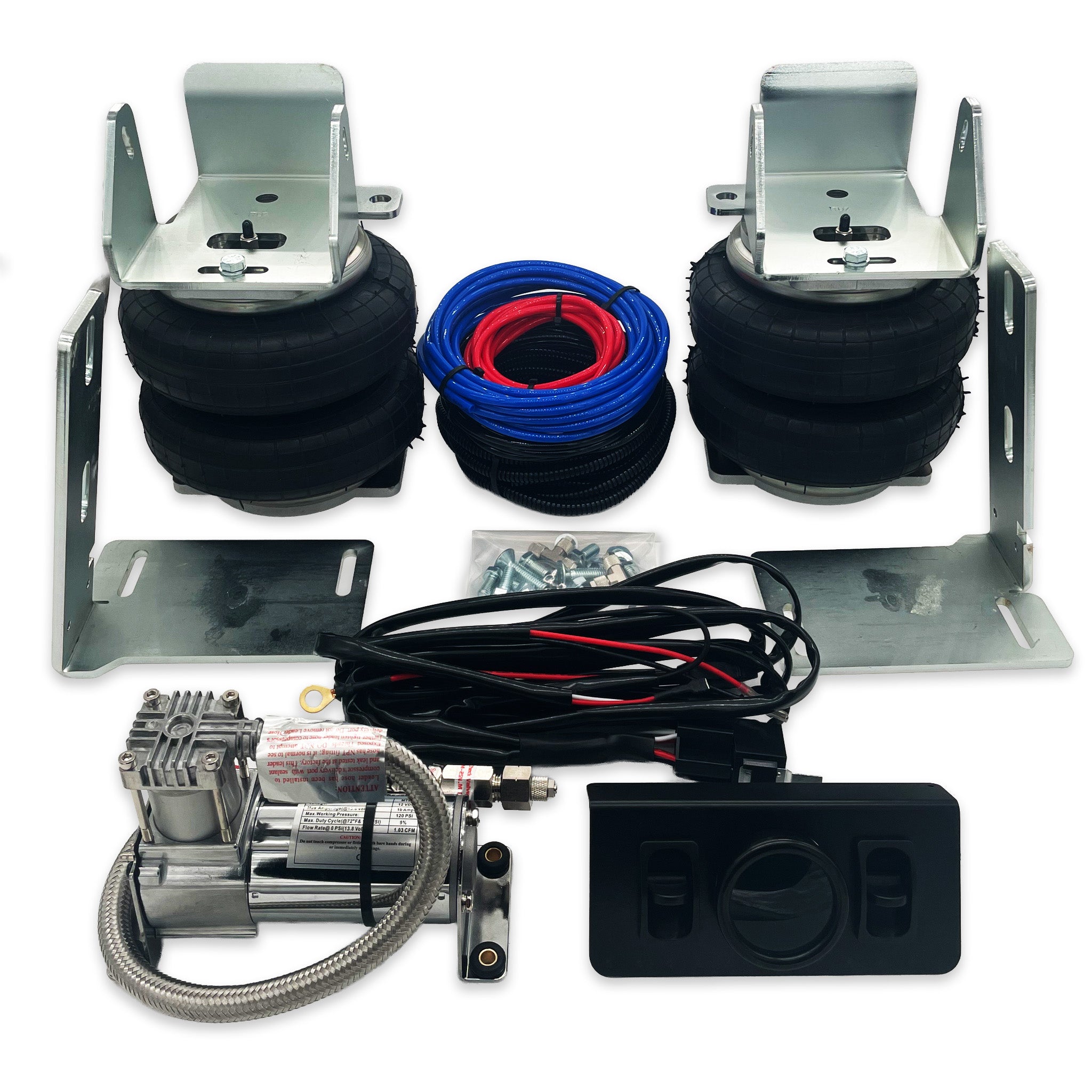

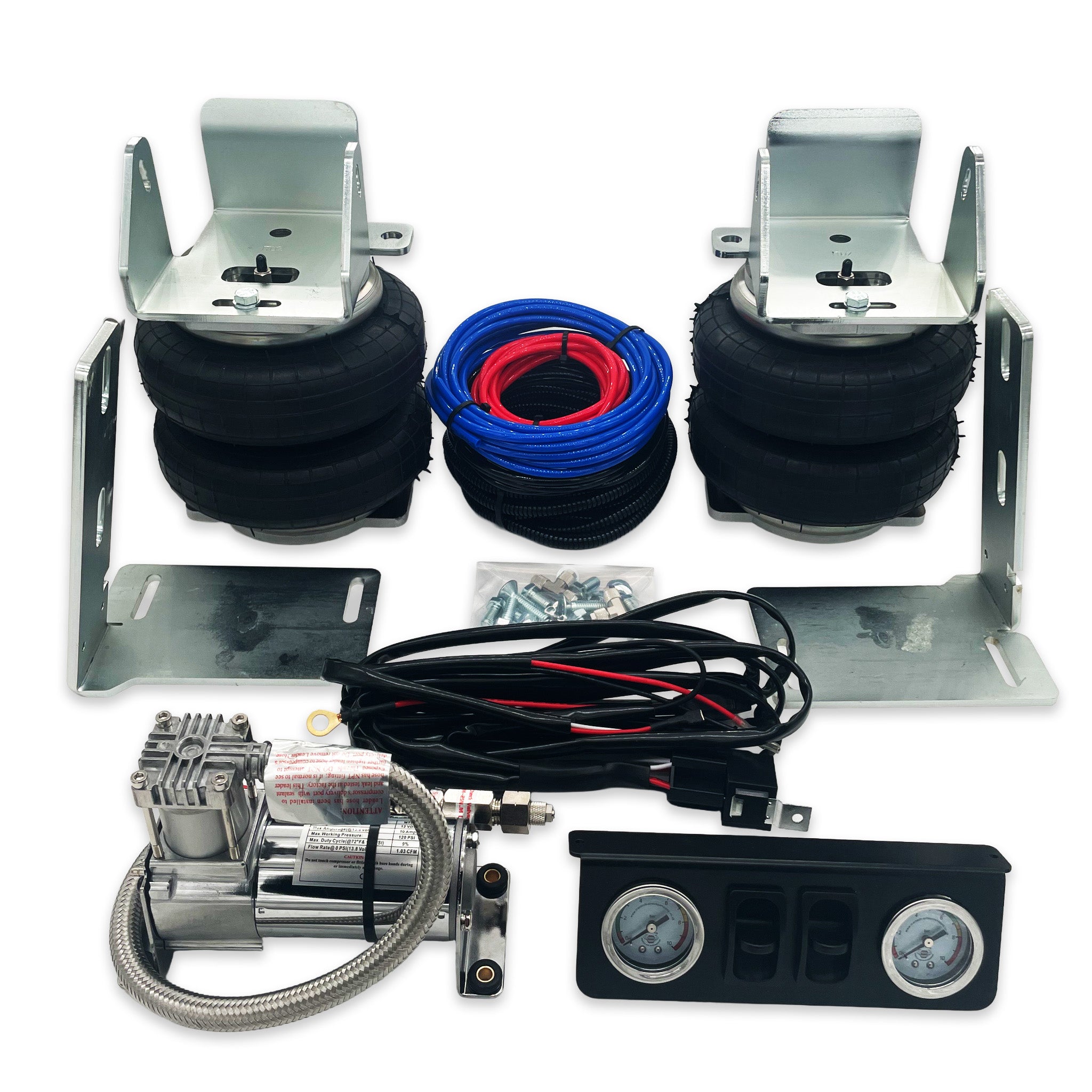

Basic Kit includes:

  • Fully galvanised heavy duty steel brackets
  • 2 x 180/2 Martech Heavy Duty Air Springs
  • Gauge Panel or Dash Panel with 2 x Gauge & 2 x Schrader Valve
  • 2 x 8 Metre airline
  • 2 x 6 Metre protection conduit
  • 2 x T Joint
  • Bolts
  • Fitting guide

+ Compressor Kit includes:

  • 12V Heavy duty martech mini air compressor
  • 2 Airline for Compressor
  • Cables
  • Additional airline

MIN (0.7 BAR )WHEN UNLOADED AND  ( 6 BAR )WHEN LOADED

HEIGHT: MIN 90MM, MAX 200MM. ( MAX HEIGHT IS DEPENDS ON WEIGHT OF LOAD )

All electrical components/gauges/valves are only to be used in the INTERIOR.

Rubena branded air bags support up to 4000 KG per pair

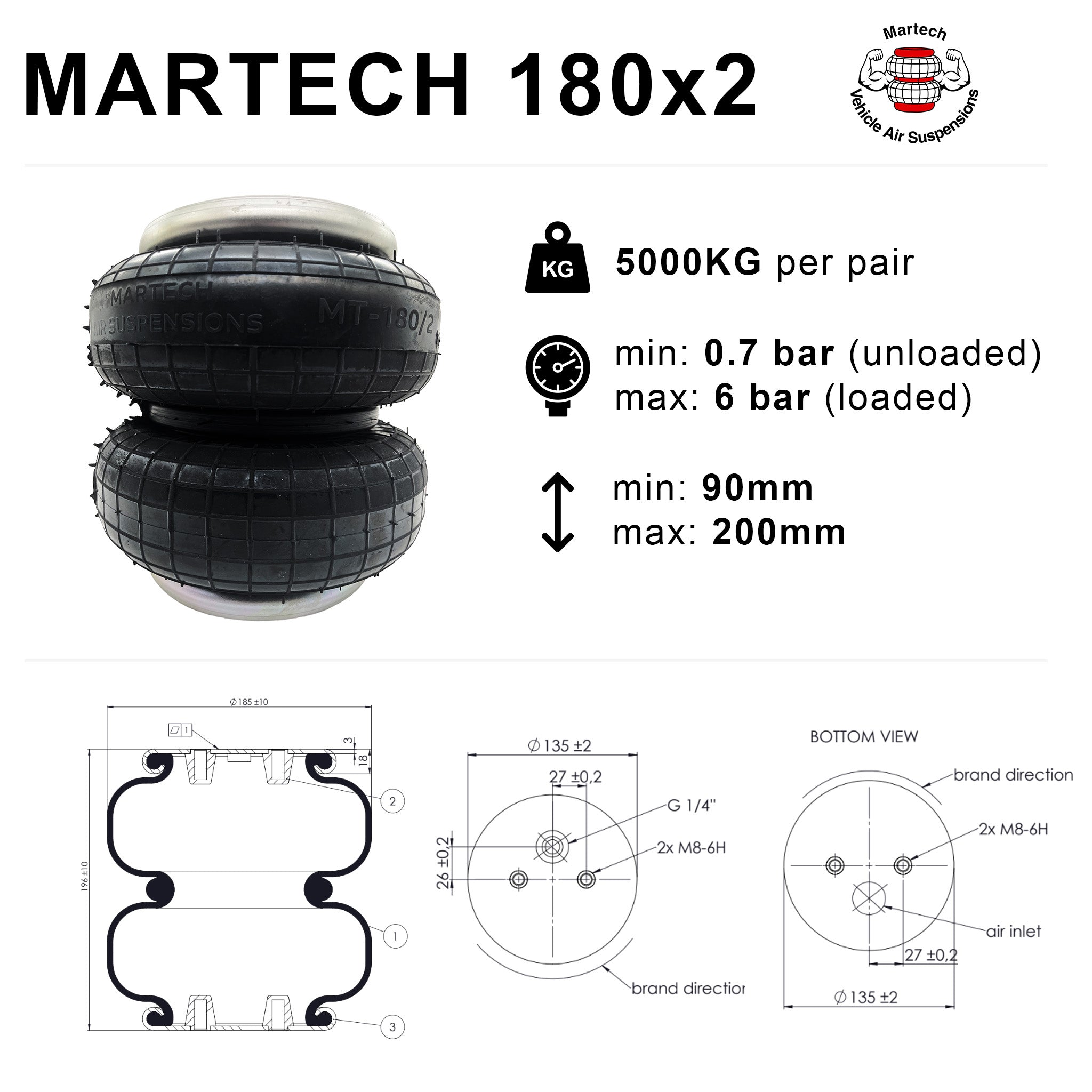

Martech branded air bags support up to 5000 KG per pair

WEIGHT UPRATING ONLY APPLIES TO LEISURE VEHICLES. WILL NOT WORK FOR COMMERCIAL VEHICLES.
