Comfort Kit for Ford Transit (DRW) 2001 - 2024

Gauge Type
Panel Style
£395.99 inc. VAT
£439.00 Sale £395.99 inc. VAT

Product details

  • Make Ford
  • Model Transit
  • Year 2014 - 2024
  • Drivetrain RWD
  • Rear Wheel Layout Twin/Double Rear Wheel
  • System Type Comfort
  • Airbag 4000KG - Rubena 170x2
Description

Semi Air Suspension Kit Designed for:

  • Ford Transit manufactured from 2001-2024, twin rear wheel only!
Make/Model Ford Transit
Year 2001-2024
Drivetrain Rear Wheel Drive
Rear Wheel Layout Twin Rear Wheel
Body Type Panel Van, Tipper, Motorhome, Camper, box van, horsebox, luton, crew van, recovery, dropside, flatbed
Chassis Type All standard type chassis



EXCLUDING AL-KO TYPE TORSION BARS CHASSIS

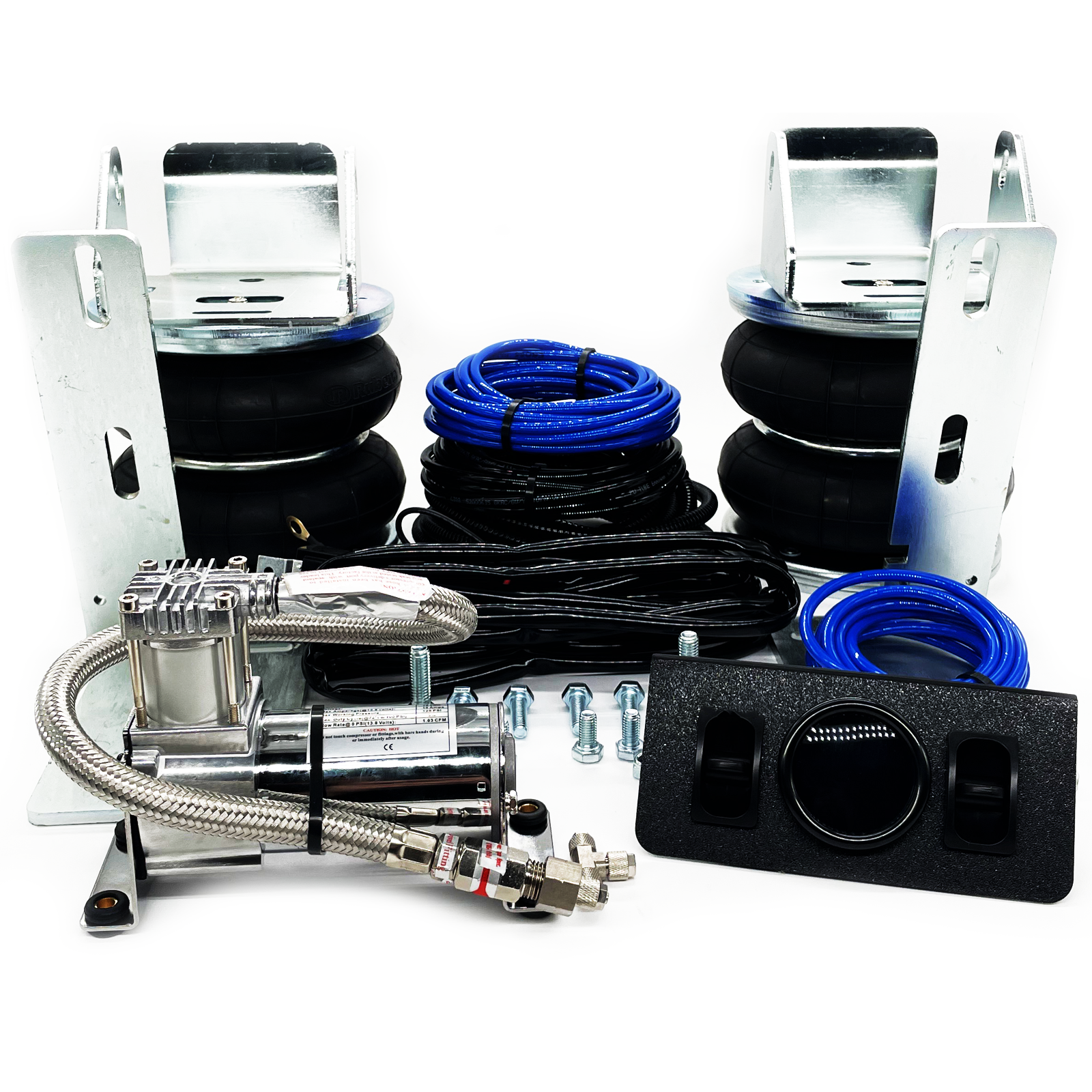

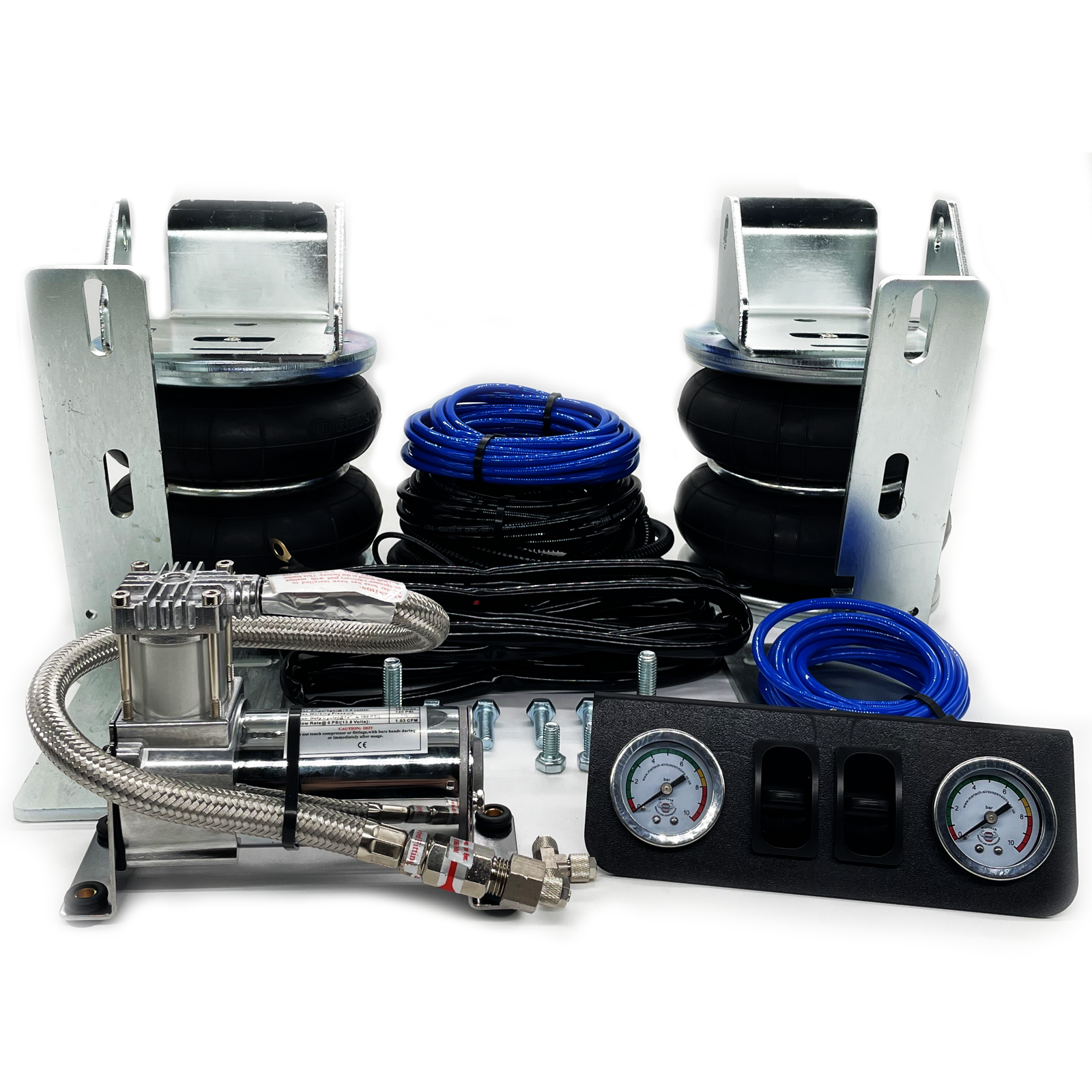

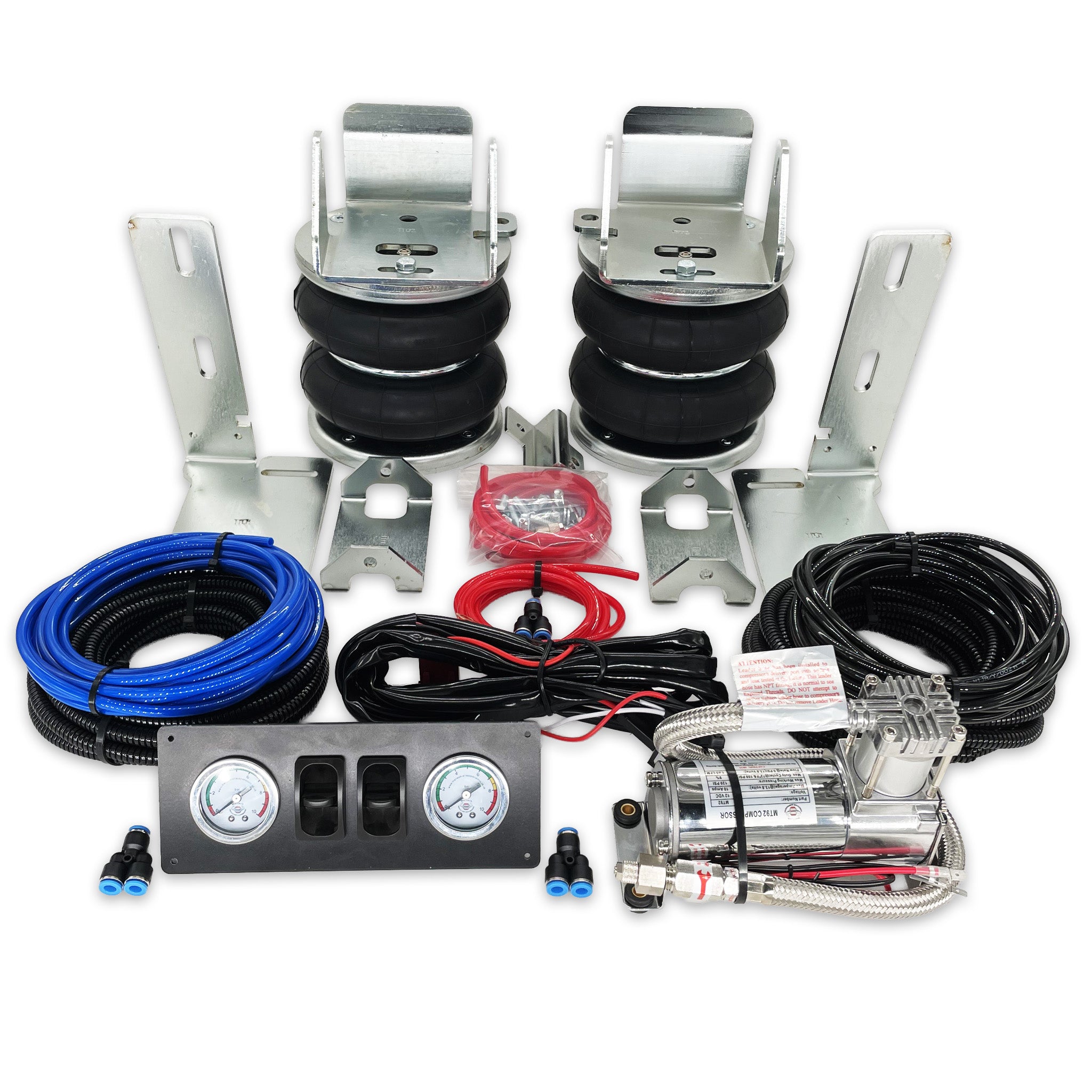

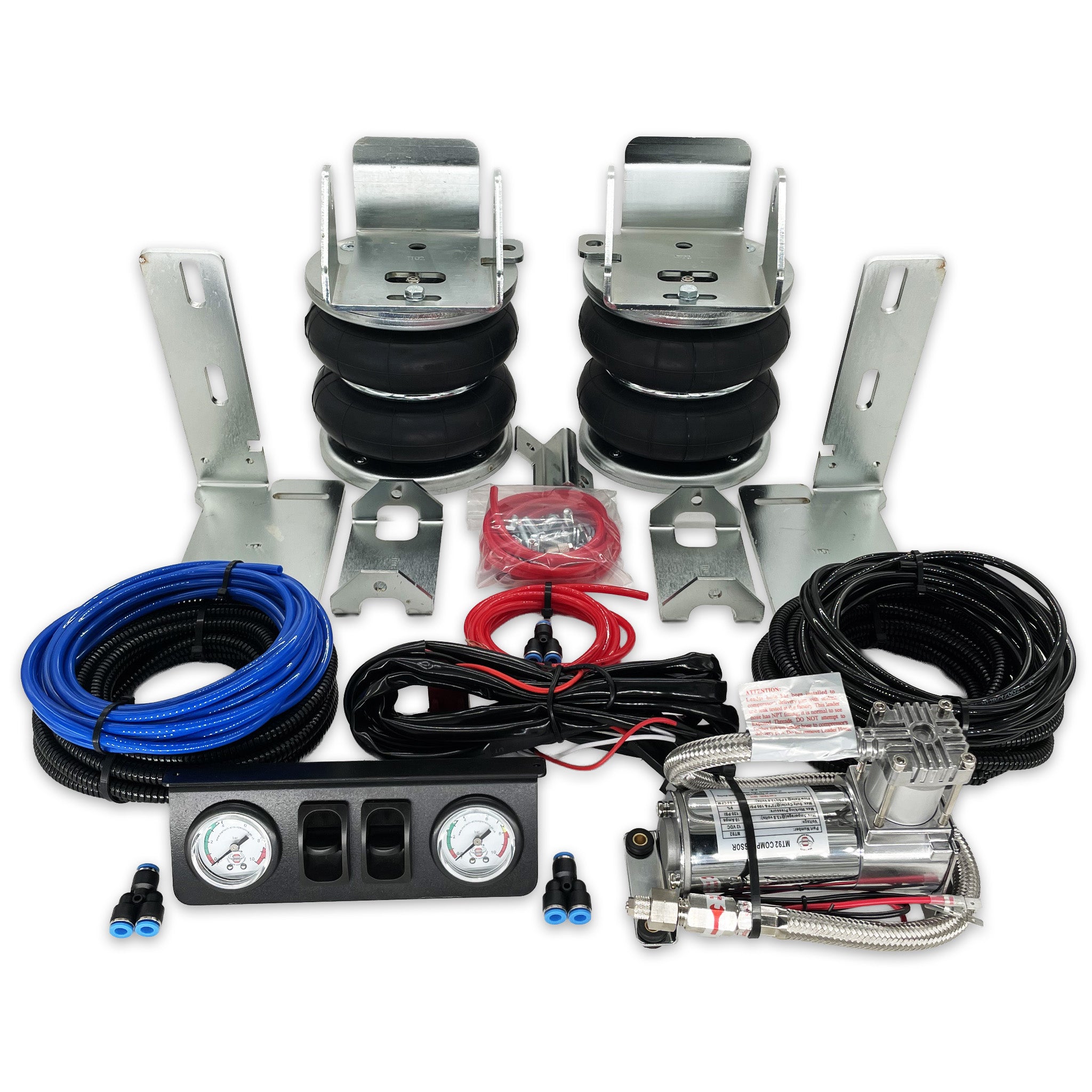

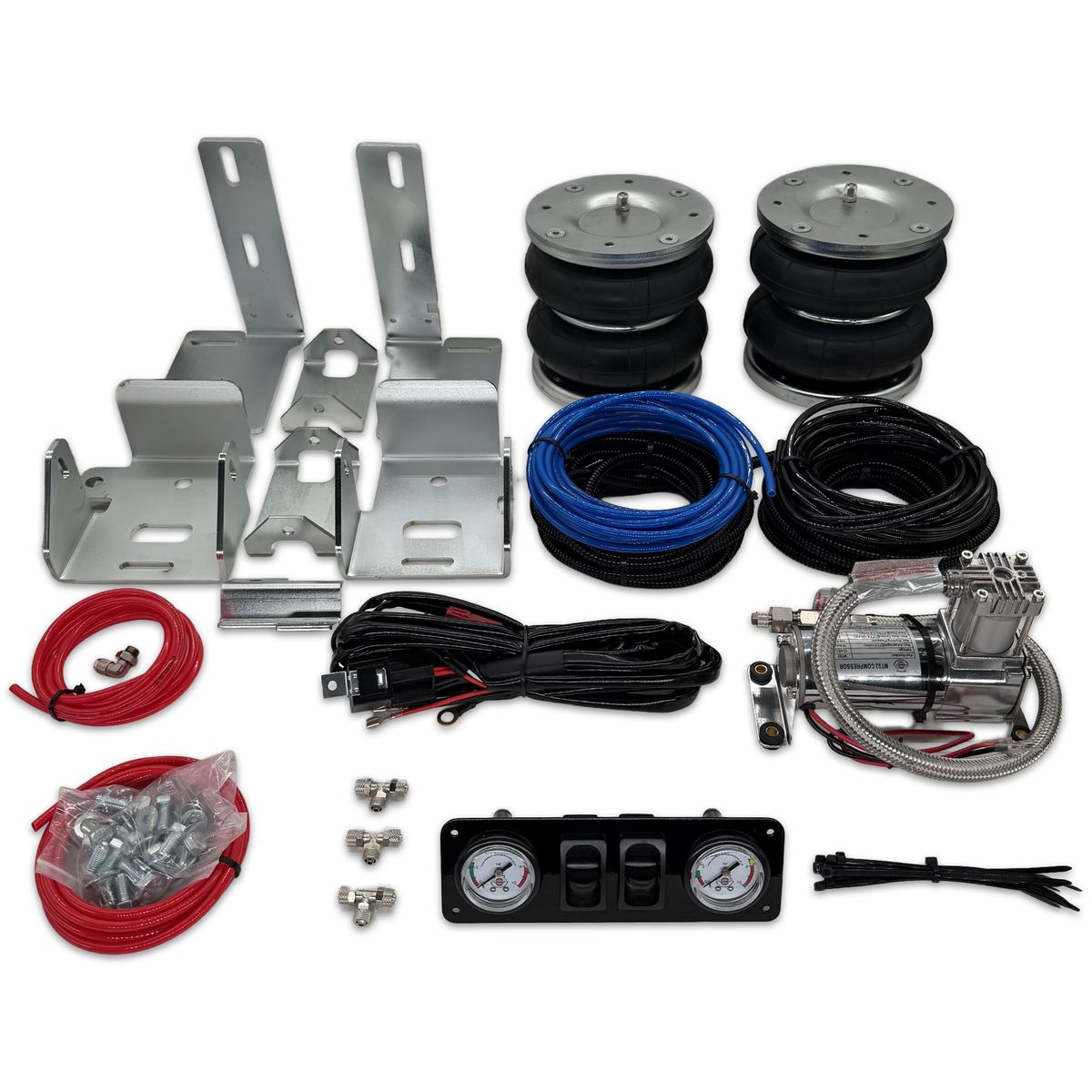

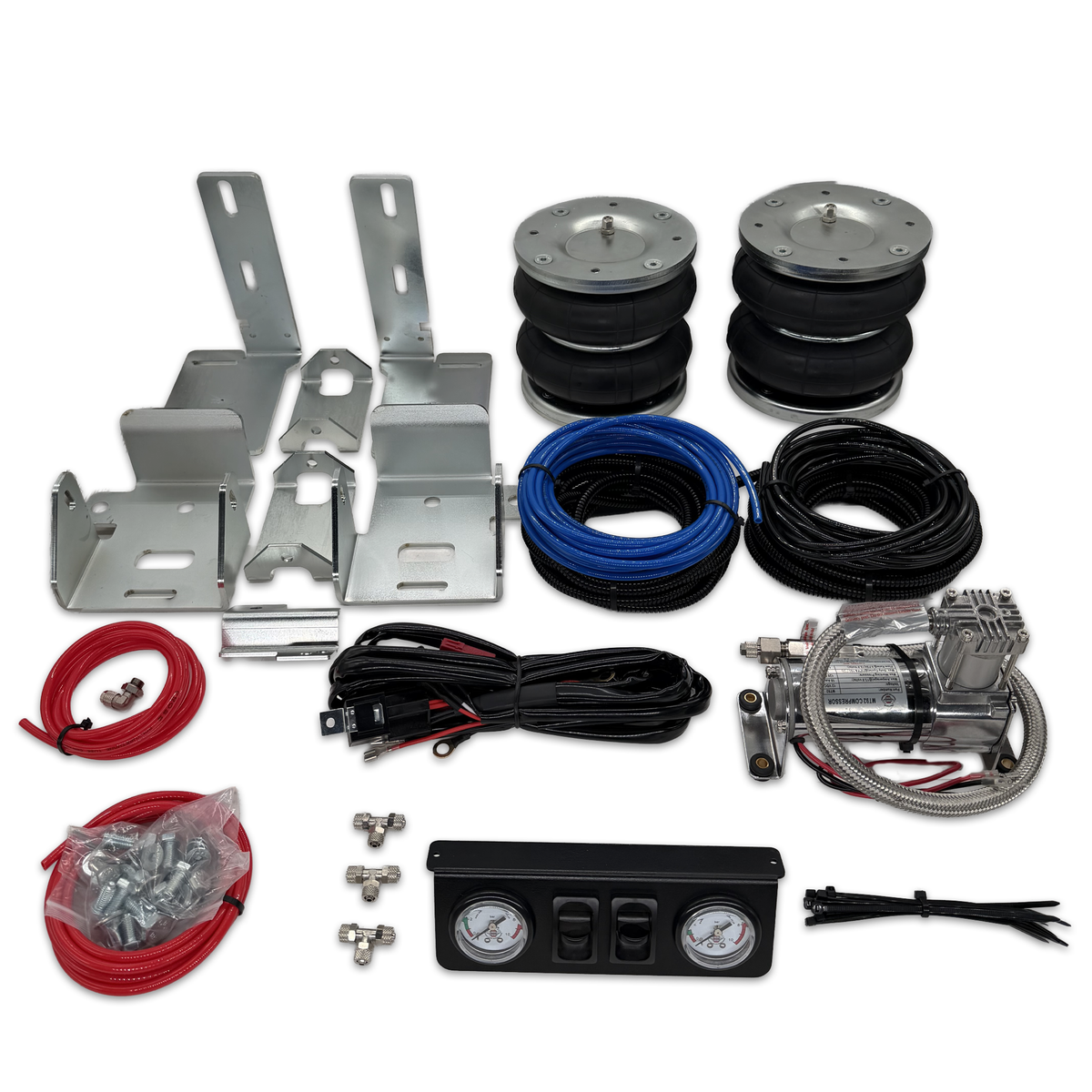

Basic Kit includes:

  • Fully galvanised heavy duty steel brackets
  • 2 x 170/2 Rubena Heavy Duty Air Springs
  • Gauge Panel or Dash Panel with 2 x Gauge & 2 x Schrader Valve
  • 2 x 8 Metre airline
  • 2 x 6 Metre protection conduit
  • 2 x T Joint
  • Bolts
  • Fitting guide

MIN (0.7 BAR )WHEN UNLOADED AND  ( 6 BAR )WHEN LOADED

HEIGHT: MIN 90MM, MAX 200MM. ( MAX HEIGHT IS DEPENDS ON WEIGHT OF LOAD )
