Fiamma F80S Roof Mounted Awning - Ducato / Boxer / Relay (After 06/2006)
Fiamma F80S Roof Mounted Awning

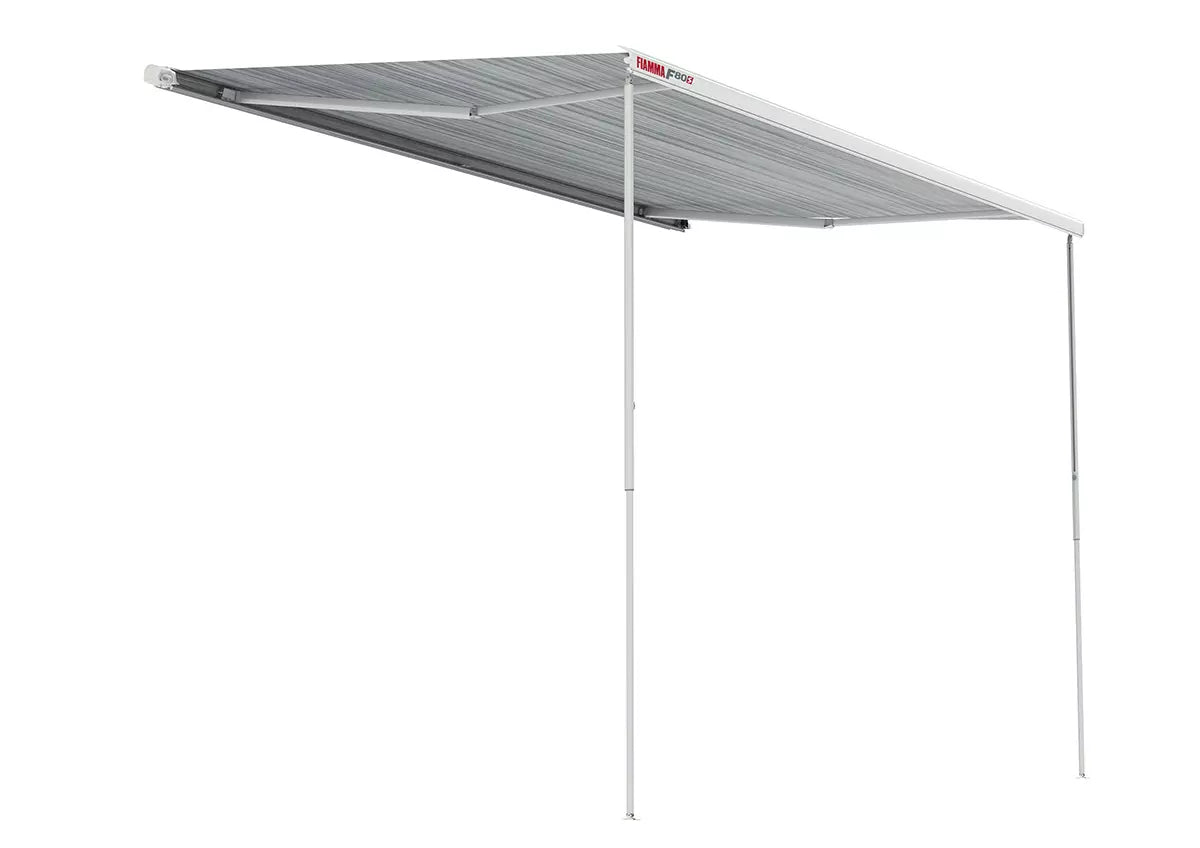

The Fiamma F80S is a modern, compact roof-mounted awning designed for motorhomes, campervans and caravans. It is the latest evolution in Fiamma’s roof installation awning range and replaces the long-established F65S, offering a more streamlined profile with improved aerodynamic performance.

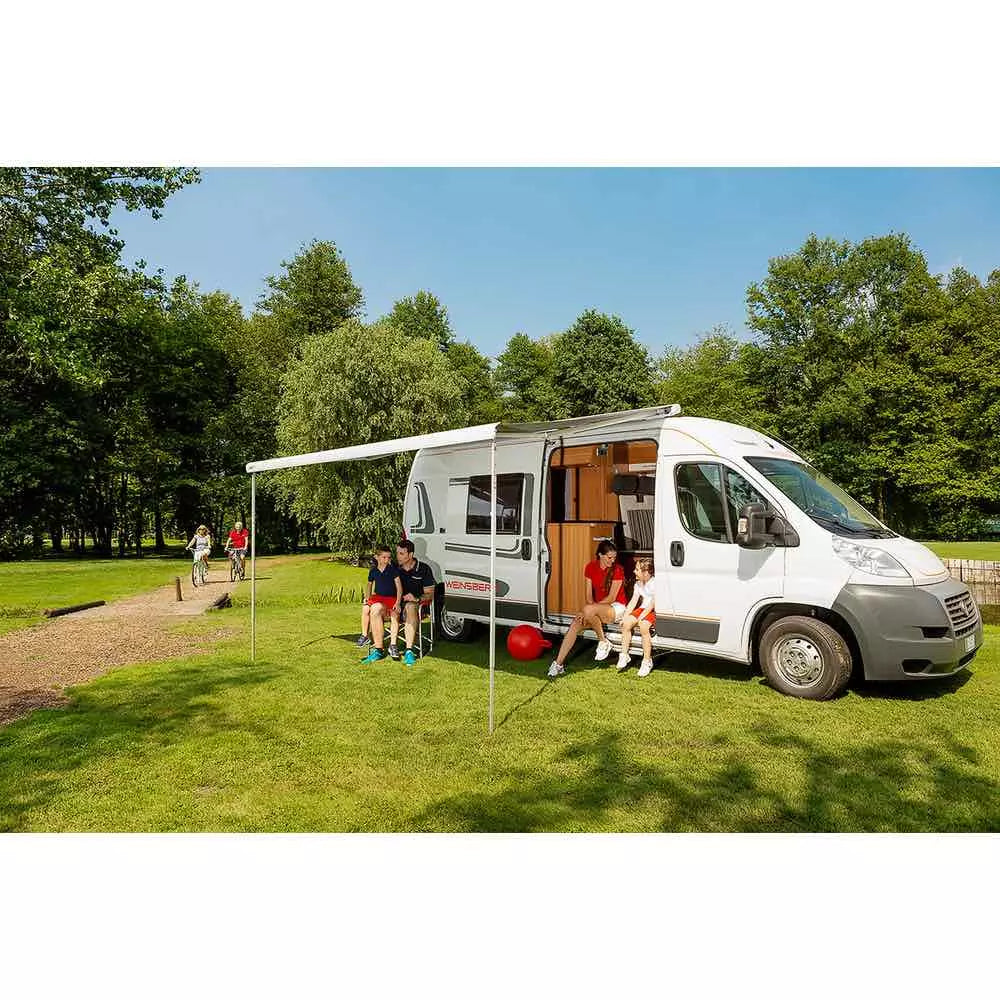

Mounted directly to the vehicle roof, the F80S does not interfere with the opening and closing of high side doors and is particularly well suited to vehicles where there is limited space above the door for a wall-mounted awning. This includes conversions with awning lights, body mouldings or other features that prevent traditional wall installation.

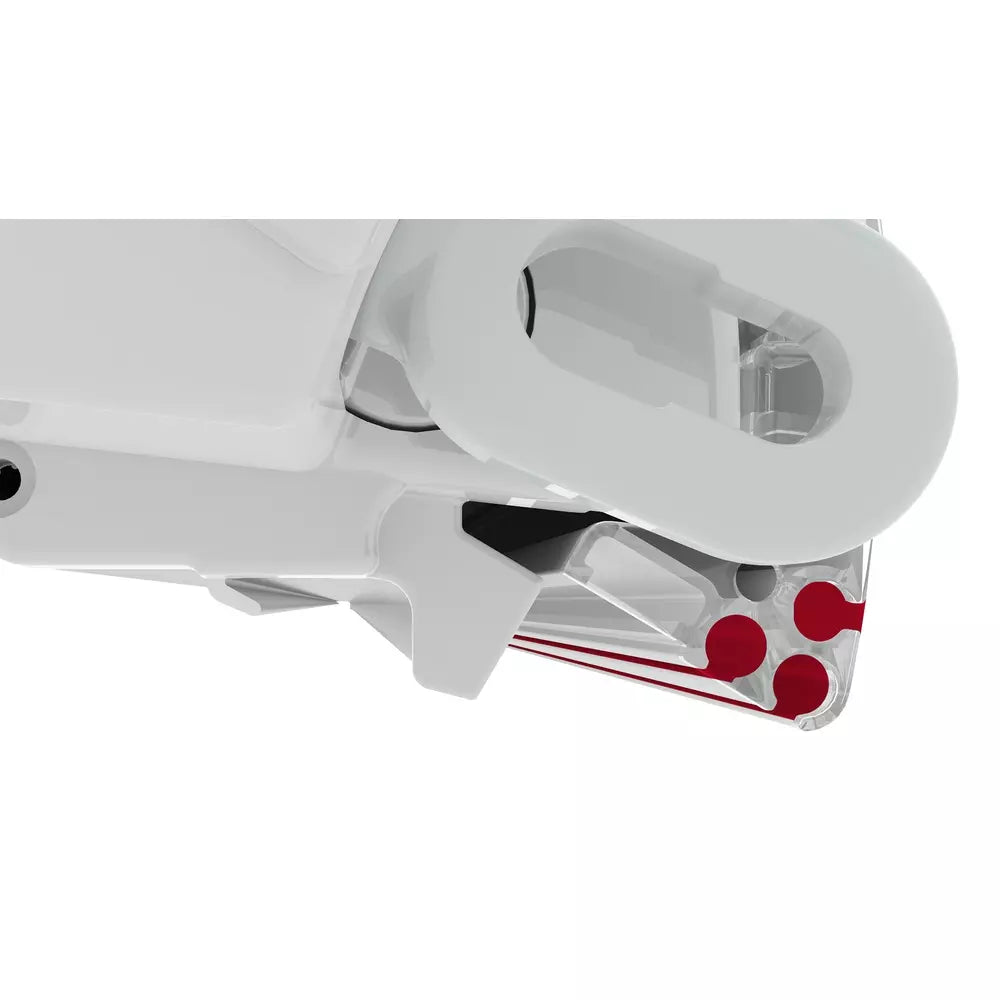

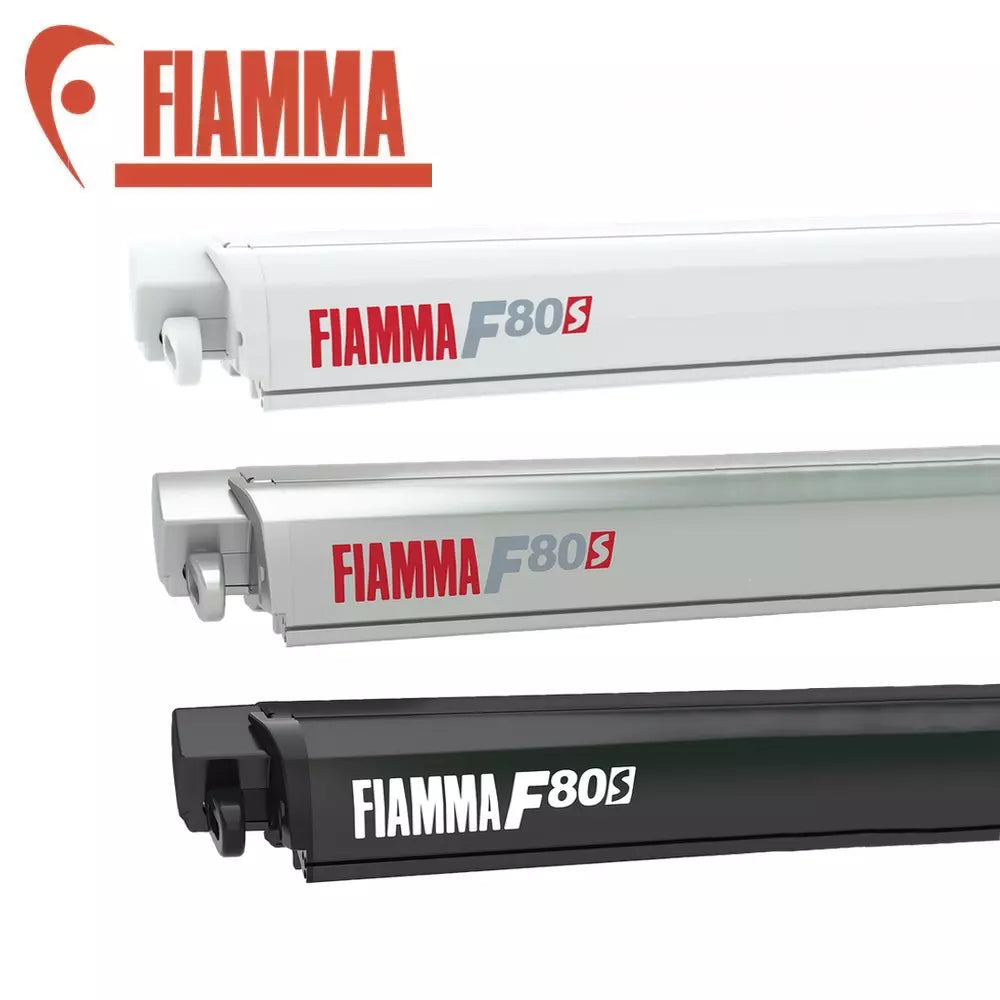

The awning features an extremely slim cross-section, allowing it to integrate neatly with the roofline of the vehicle. A number of technical refinements reduce overall protrusion, while innovations such as integrated LED pre-wiring on both the case and lead bar, along with triple guide channels on the lead bar, make the F80S a highly versatile solution for roof-mounted applications.

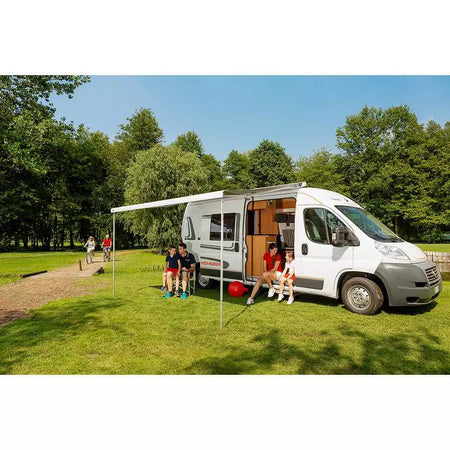

With its low-profile case designed to sit cleanly on the edge of the roof without overhanging, the F80S delivers a sleek, factory-style finish on popular van conversions including the Ducato, Boxer and Relay platforms.
Important: This listing is for the awning only. Vehicle-specific adapter brackets are not included and must be purchased separately. Suitable adapters can be found via the links in the table below.
F80S Fitment Guide – Ducato / Boxer / Relay (After 06/2006)
The table below shows commonly used awning sizes and corresponding adapter kits for Ducato, Boxer and Relay van conversions built after June 2006.
| Vehicle length | Roof height | Recommended awning size | Adapter kit |
|---|---|---|---|
| L2 (5416 mm) | H2 (2524 mm) | F80S 320 | View Adapter |
| L3 (5998 mm) | H2 (2524 mm) | F80S 370 | View Adapter |
| L4 (6363 mm) | H2 (2524 mm) | F80S 400 | View Adapter |
| L2 (5416 mm) | H3 (2764 mm) | F80S 320 | View Adapter |
| L3 (5998 mm) | H3 (2764 mm) | F80S 370 | View Adapter |
| L4 (6363 mm) | H3 (2764 mm) | F80S 400 | View Adapter |
F80S Technical Specifications
The table below outlines key dimensions, projection and weights for the Fiamma F80S awning range. Measurements are approximate and provided for guidance.

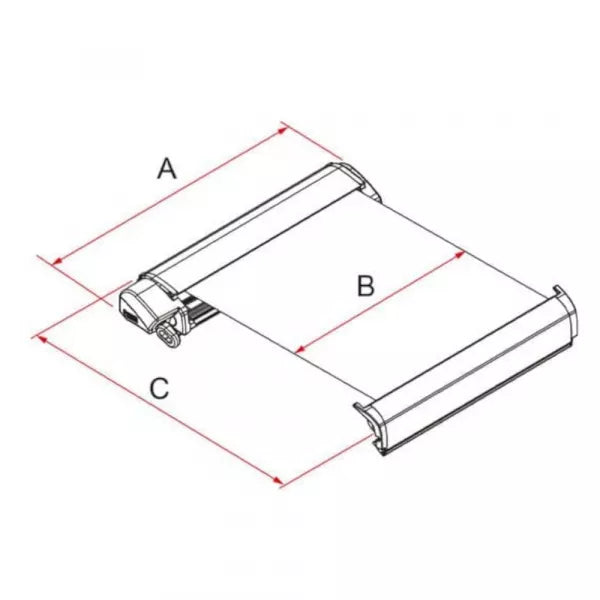

| Model | Awning length (A) | Canopy length (B) | Extension (C) | Shade surface | Net weight |
|---|---|---|---|---|---|
| F80S 290 | 290 cm | 278 cm | 200 cm | 5.6 m² | 27 kg |
| F80S 320 | 320 cm | 308 cm | 250 cm | 7.7 m² | 29 kg |
| F80S 340 | 340 cm | 328 cm | 250 cm | 8.2 m² | 30 kg |
| F80S 370 | 370 cm | 358 cm | 250 cm | 9.0 m² | 32 kg |
| F80S 400 | 400 cm | 388 cm | 250 cm | 9.7 m² | 34 kg |
| F80S 425 | 425 cm | 412 cm | 250 cm | 10.3 m² | 35 kg |
| F80S 450 | 450 cm | 431 cm | 250 cm | 10.8 m² | 36.5 kg |
