Box
An enclosed control unit for mounting onto a suitable flat surface in the footwell or vehicle garage. Allow room for the air line connections.
Air Suspension Standard Kit for Fiat Ducato from 1994 onwards
Supports your existing suspension, helping improve driving comfort and stability.
Original price£279.00
Black Friday price at checkout£237.15
Black Friday · 15% off
Save £41.85 · Automatically applied at checkout
- Improved driving comfort.
- Improved stability.
- Helps level your vehicle on uneven ground.
DIY-friendly fitting with step-by-step instructions.
Free delivery to mainland UK
30 day returns
2 year warranty
Fitment & specification
| Make | Fiat |
|---|---|
| Model | Ducato |
| Sub-model | X230, X244, X250, X290, X295 |
| Complete kit years | 1994 onwards |
| Handbrake | Manual or Electronic Handbrake |
| Drivetrain | FWD |
| Rear wheel layout | Single Rear Wheel |
| System type | Standard |
| Air spring specification | 4000KG - Rubena 170x2 |
Benefits

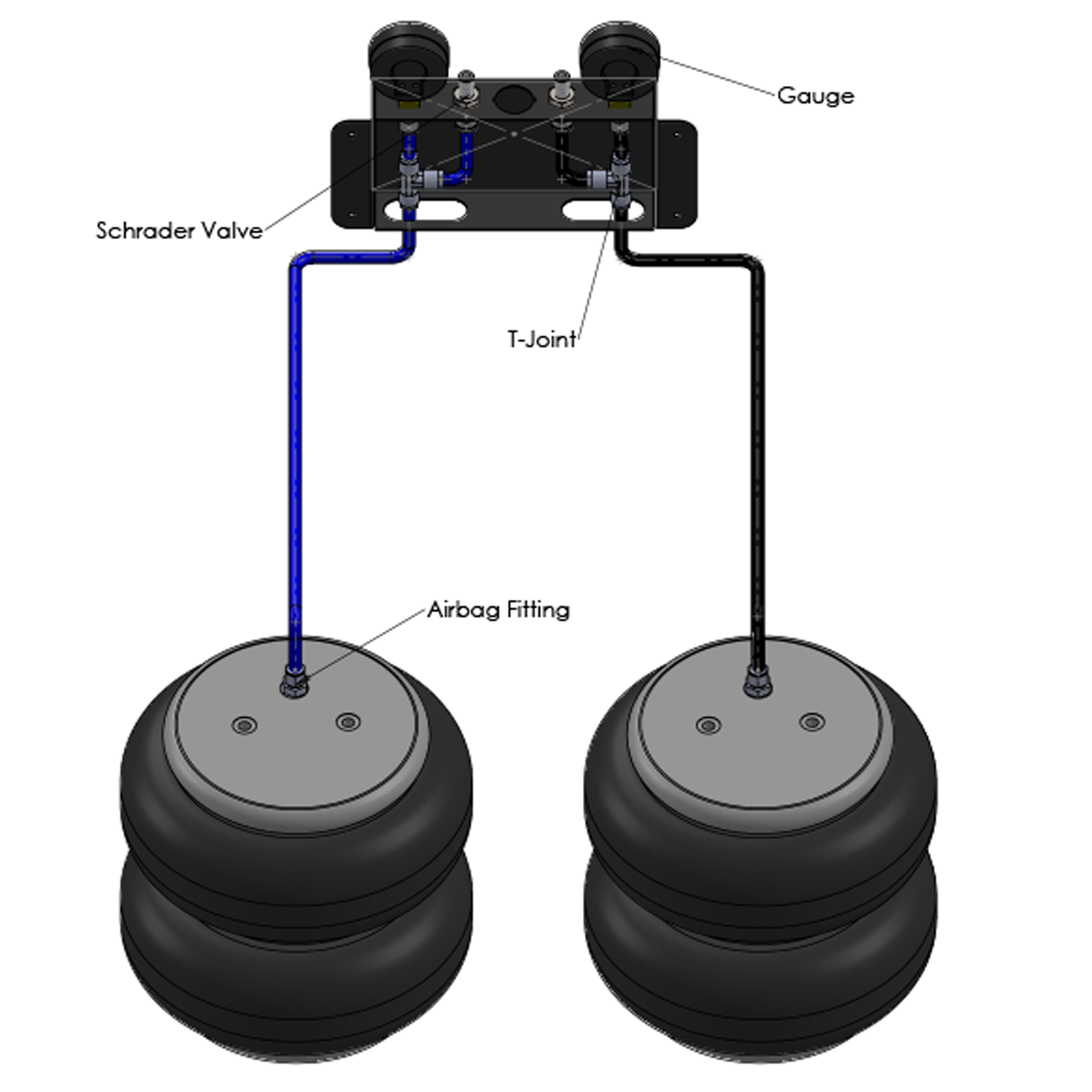

Two separate air circuits let you adjust each rear air spring independently using individual inflation valves.

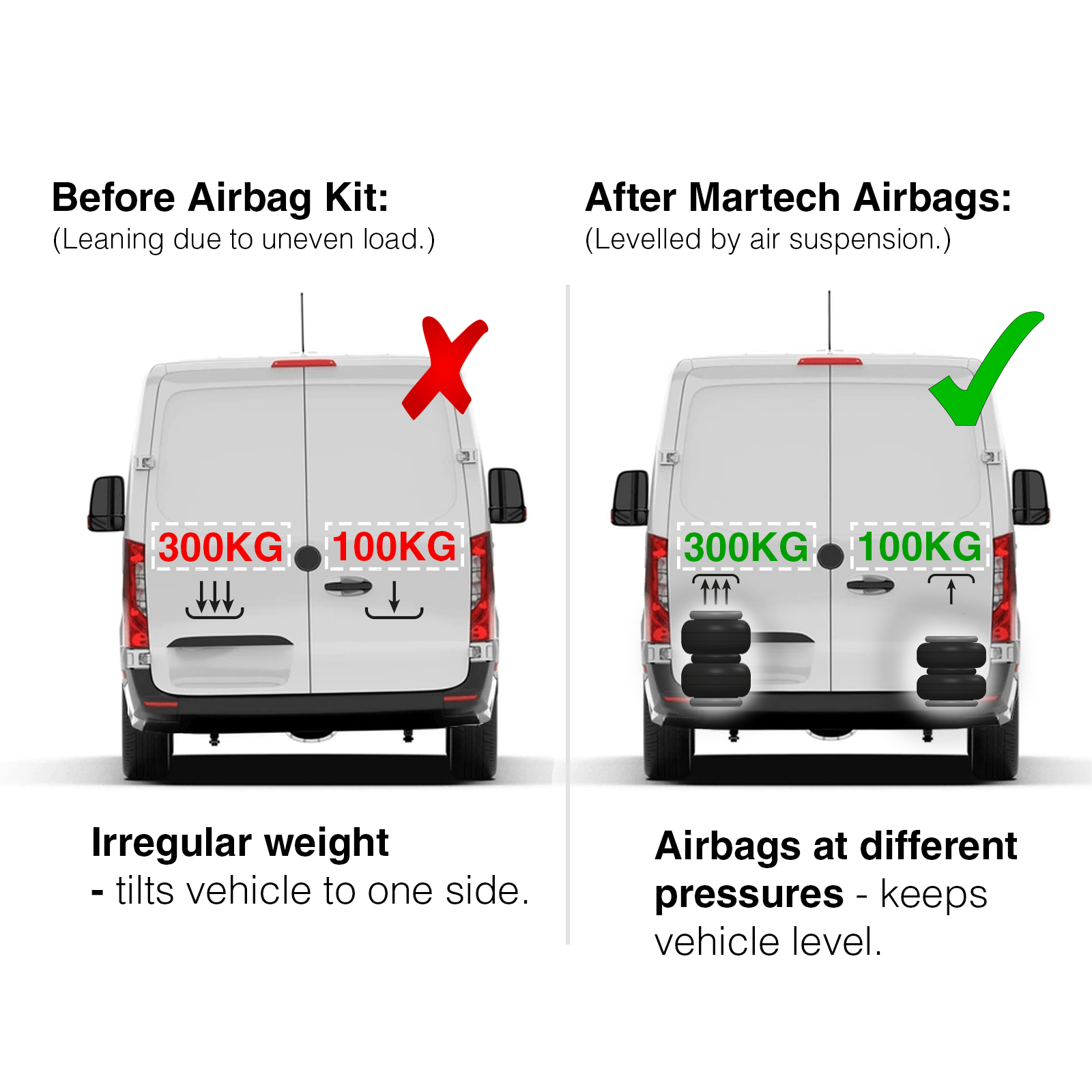

- Adjustable vehicle levelling
Adjust each side for uneven loads.
- Stability and handling
Added stability when carrying a load.
- Greater ride comfort
Helps cushion uneven roads.
- Extra support under load
Extra support for your original suspension.
Installation & DIY fitting
DIY-friendly fitting with step-by-step instructions to guide you through installing your kit.
Check the instructions for your vehicle before starting, including the tools required and how to safely support the vehicle. If you prefer, your local workshop can fit the kit for you.

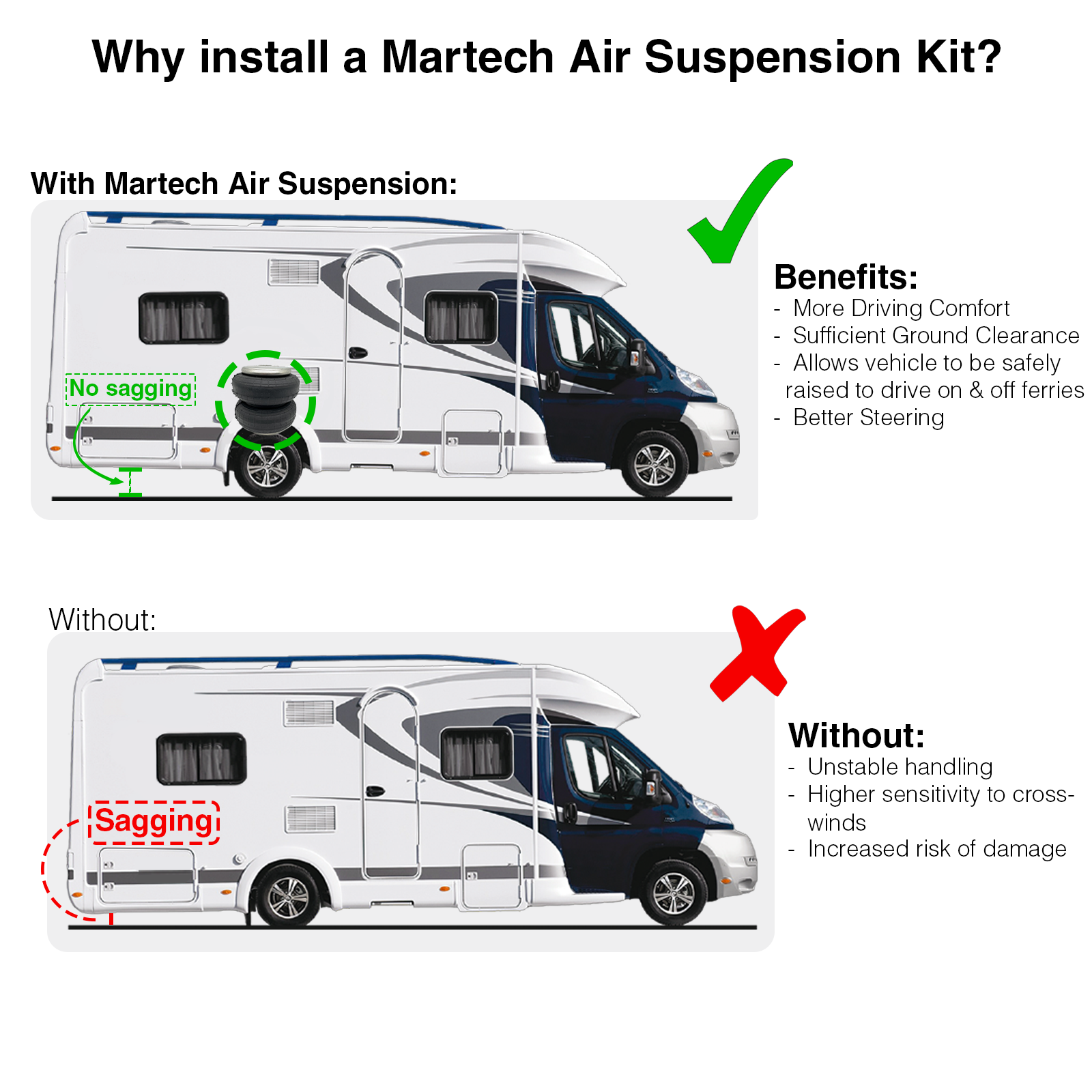

Enjoy the benefits of semi-air suspension
-
Improved driving comfort
Helps cushion bumps for a smoother ride.
-
Improved stability
Added rear support for more settled handling.
-
Help with vehicle levelling
Adjust each side to help level on uneven ground.
-
DIY-friendly installation
Step-by-step instructions for straightforward fitting.
-
Extra support under load
Helps reduce rear sag when loaded.
Check before you order
Confirm your vehicle fitmentFiat Ducato
Before ordering your Fiat Ducato semi-air suspension kit, compare your vehicle’s rear suspension with the underside photo shown here. Look at the axle, original suspension and bump stop mounting area.
The rear suspension layout matters as well as the vehicle’s name and year. Use this photo alongside the fitment details to help identify the correct kit for your vehicle.
- Year
- 1994 onwards
- Drivetrain
- FWD
- Rear wheels
- Single Rear Wheel
- Handbrake
- Manual or Electronic Handbrake
Some details may look different
Bump stop colour and the gap between the bump stop and axle may differ from the example shown. Compare the overall suspension layout and mounting points, rather than colour or gap alone.
If your suspension looks different or you are unsure, send us a clear underside photo before ordering.
Inside the kit
What’s included in your kit
- 2 × air springs
4000KG - Rubena 170x2
- Set of metal mounting installation brackets
For the specified vehicle application.
- Set of nuts, bolts and washers
Hardware for assembling and securing the kit components.
- 2 × 8 m airline tubing
16 metres in total.
- 2 × 6 m protective conduit
12 metres in total.
- 2 × T-joints
3 in total when the compressor option is selected.
- Control unit
2 inflation valves and 2 pressure gauges for independent adjustment.
- 10 × airline zip ties
For securing the airline and conduit along their routing.
- Installation instructions
Step-by-step guidance for fitting your kit.
Optional upgrade

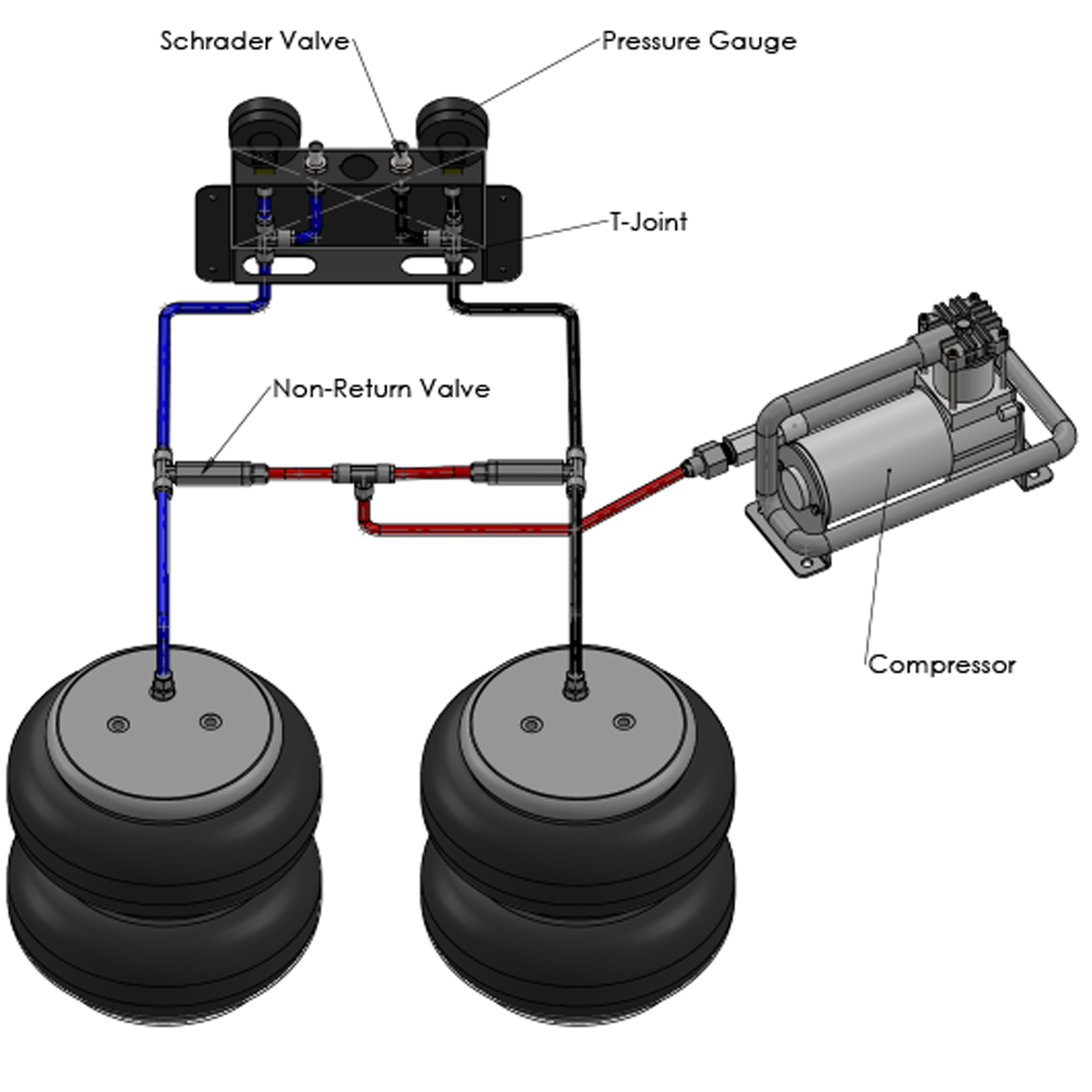

Compressor option includes
Included only when you choose a kit with a compressor.
- 1 × 12 V 120 PSI compressor
Onboard air supply for inflating the air springs.
- Wiring harness
Electrical connections for the compressor system.
- 1 × additional T-joint
3 T-joints in total.
- Compressor air filter
Helps keep dust and debris out of the compressor intake.
- 2 × non-return valves
Help prevent air flowing back through the compressor connections.
Your controls. Your preferred position.
Choose your control panel style
These universal control units can be installed on any suitable flat surface inside your vehicle. Common locations include a side panel in the driver or passenger footwell, or the motorhome garage. Choose an accessible position with room for the connections behind the panel, clear of pedals and moving parts.
Flat
A flat panel for fitting to a suitable interior surface. Allow clearance behind the panel for the gauges, controls and connections, and any openings required for installation.
Vehicle weight uprating
This kit may help with up-plating
Conversions, extra equipment and everyday essentials all add weight. Vehicle uprating, also known as up-plating, may increase the permitted maximum loaded weight of an eligible vehicle, giving you more usable payload within its approved limits.
Suspension support. An assessed weight increase.
Fitting semi-air suspension does not automatically increase your vehicle’s legal weight limits. Confirm eligibility and any required upgrades with a suitably qualified uprating specialist before purchasing a kit for this purpose.
More capacity, where approved
Uprating changes the approved maximum weight, not the vehicle’s actual weight. Weigh your vehicle in its normal travelling condition, including each axle, to understand your remaining payload.
Where semi-air can help
Semi-air suspension adds support to the original rear suspension and helps reduce sag under load. An uprating assessment will determine whether suspension upgrades are required and whether the chosen kit is suitable.
Start with an assessment
Have your vehicle details, weight plate photograph, axle weights and tyre specifications ready. An assessor can confirm eligibility, any necessary changes and the documentation required before you proceed.
Independent uprating advice
Discuss your vehicle with SvTech
This guidance focuses on motorhomes and other leisure vehicles. SvTech assesses vehicles individually and can advise on eligibility, suitable suspension upgrades and the documentation needed.
For work vans, recovery trucks and other commercial vehicles, contact SvTech directly for advice specific to the vehicle and its use. Do not assume this kit will qualify your vehicle for an uprating.
